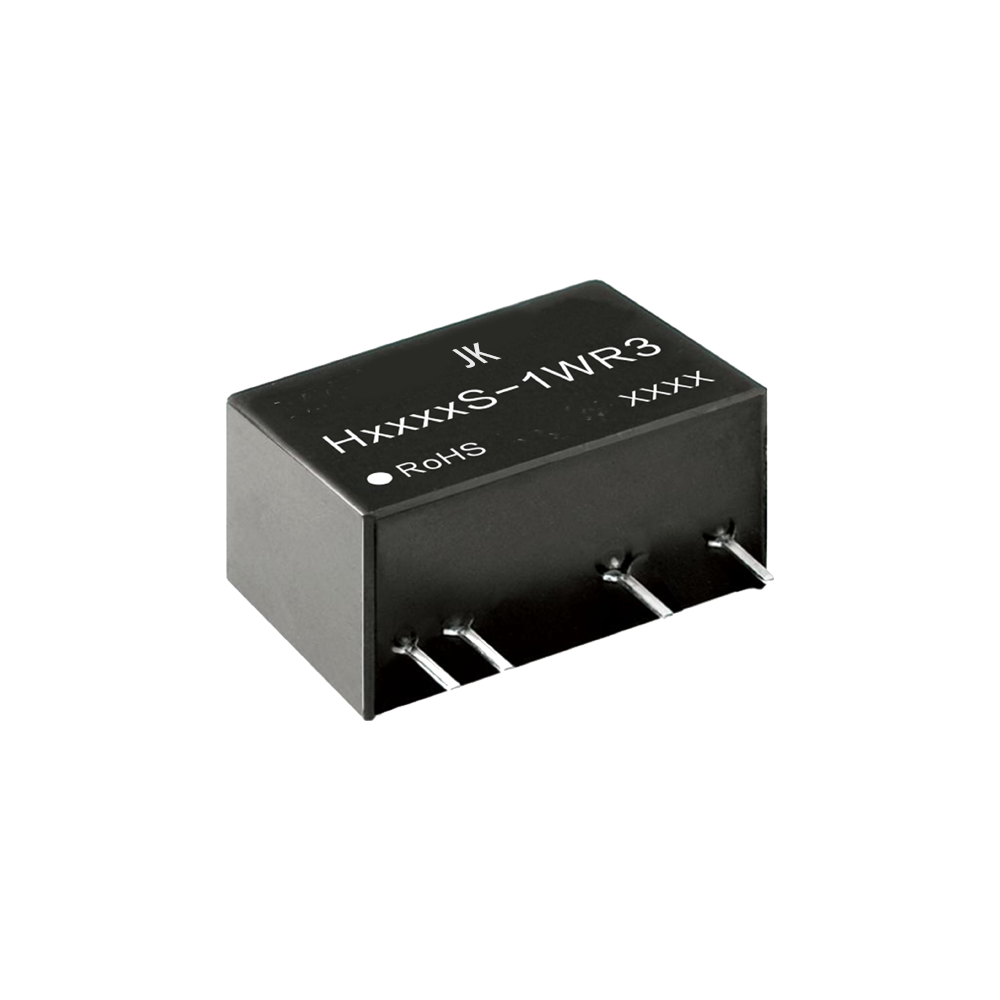

ProductsThe H_S-1WR3 series products meet reinforced insulation requirements and are primarily used in power applications requiring compact size, high isolation, low isolation capacitance, and low leakage current. They are suitable for medical, power, and IGBT drive systems. Key specifications include: Stable input voltage (±10% Vin tolerance); Input-output isolation (≤5000 VAC or 6000 VDC); Minimal requirements for output voltage stability and ripple noise. Applications encompass medical acquisition isolation, high-voltage acquisition circuits, and IGBT drive circuits.

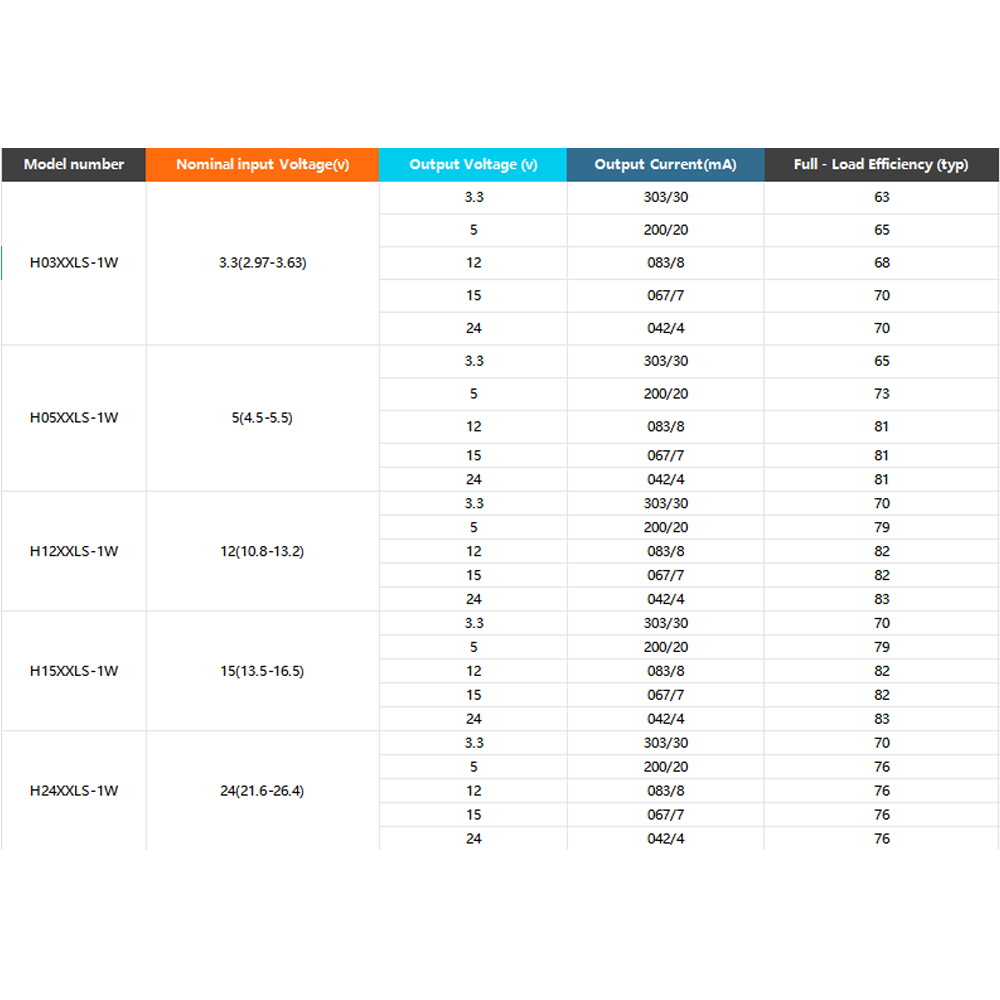

Model No | Nominal Voltage | Output Voltage/Current | Full Load Efficiency (%)① | Max Capacitive Load (μF) | |
Nominal Value (Range) | Voltage (VDC) | Current (mA) Max/Min | Typ | ||
H0303LS-1W | 3.3(2.97-3.63) | 3.3 | 303/30 | 63 | 1000 |
H0305LS-1W | 5 | 200/20 | 65 | 1000 | |
H0312LS-1W | 12 | 83/8 | 68 | 470 | |
H0315LS-1W | 15 | 67/7 | 70 | 220 | |
H0324LS-1W | 24 | 42/4 | 70 | 220 | |
H0503LS-1W | 5(4.5-5.5) | 3.3 | 303/30 | 65 | 1000 |
H0505LS-1W | 5 | 200/20 | 73 | 1000 | |
H0512LS-1W | 12 | 83/8 | 81 | 470 | |
H0515LS-1W | 15 | 67/7 | 81 | 220 | |
H0524LS-1W | 24 | 42/4 | 81 | 220 | |
H1203LS-1W | 12(10.8-13.2) | 3.3 | 303/30 | 70 | 1000 |
H1205LS-1W | 5 | 200/20 | 79 | 1000 | |
H1212LS-1W | 12 | 83/8 | 82 | 470 | |
H1215LS-1W | 15 | 67/7 | 82 | 220 | |
H1224LS-1W | 24 | 42/4 | 83 | 220 | |
H1503LS-1W | 15(13.5-16.5) | 3.3 | 303/30 | 70 | 1000 |
H1505LS-1W | 5 | 200/20 | 79 | 1000 | |
H1512LS-1W | 12 | 83/8 | 82 | 470 | |
H1515LS-1W | 15 | 67/7 | 82 | 220 | |
H1524LS-1W | 24 | 42/4 | 83 | 220 | |
H2403LS-1W | 24(21.6-26.4) | 3.3 | 303/30 | 70 | 1000 |
H2405LS-1W | 5 | 200/20 | 76 | 1000 | |
H2412LS-1W | 12 | 83/8 | 76 | 470 | |
H2415LS-1W | 15 | 67/7 | 76 | 220 | |
H2424LS-1W | 24 | 42/4 | 76 | 220 | |
