PRODUCTS DETAILS

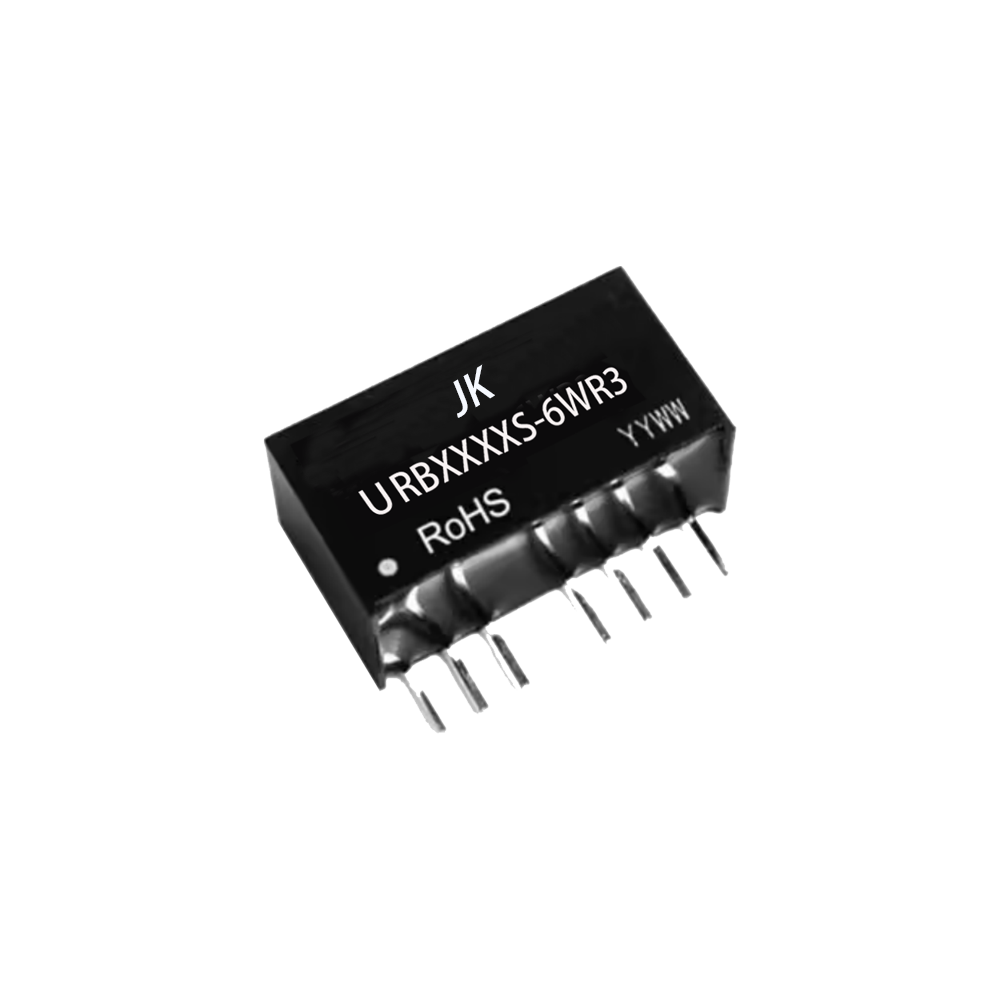

ProductsThe URB_S-6WR3 series products feature an output power of 3W, with a 4:1 ultra-wide input voltage range, 1600VDC isolation voltage, and comprehensive protection functions including input under-voltage protection, output short-circuit protection, over-current protection, and over-voltage protection. Operating temperature ranges from -40℃ to +85℃, making it widely applicable in industrial control, power systems, instrumentation, communications, railway systems, and other fields.

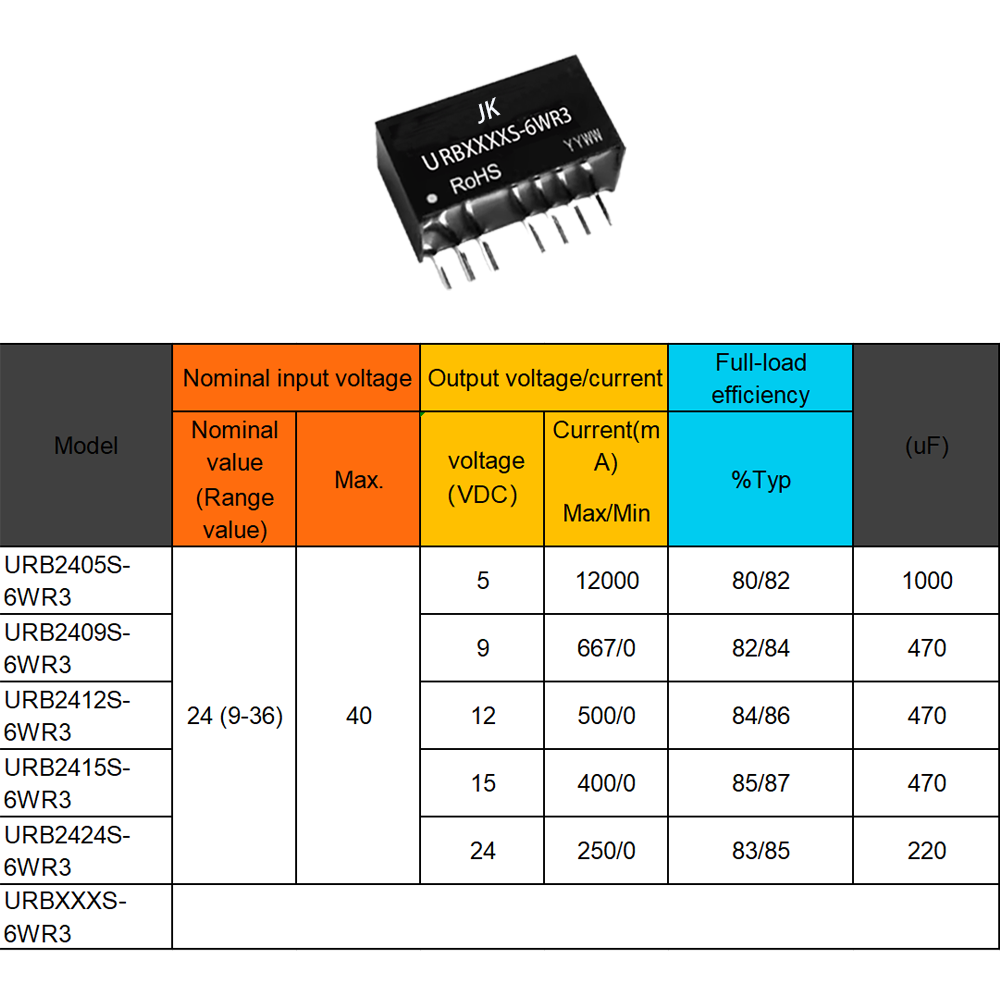

Model No | Nominal Voltage | Output Voltage/Current | Full Load Efficiency (%)② | Max Capacitive Load (μF) | ||
Nominal Value (Range) | Maximum | Voltage (VDC) | Current (mA) Max/Min | Typ | ||
URB2405S-6WR3 | 24 (9-36) | 40 | 5 | 12000 | 80/82 | 1000 |
URB2409S-6WR3 | 9 | 667/0 | 82/84 | 470 | ||
URB2412S-6WR3 | 12 | 500/0 | 84/86 | 470 | ||
URB2415S-6WR3 | 15 | 400/0 | 85/87 | 470 | ||
URB2424S-6WR3 | 24 | 250/0 | 83/85 | 220 | ||
URBXXXS-6WR3 | Customer Customization |
